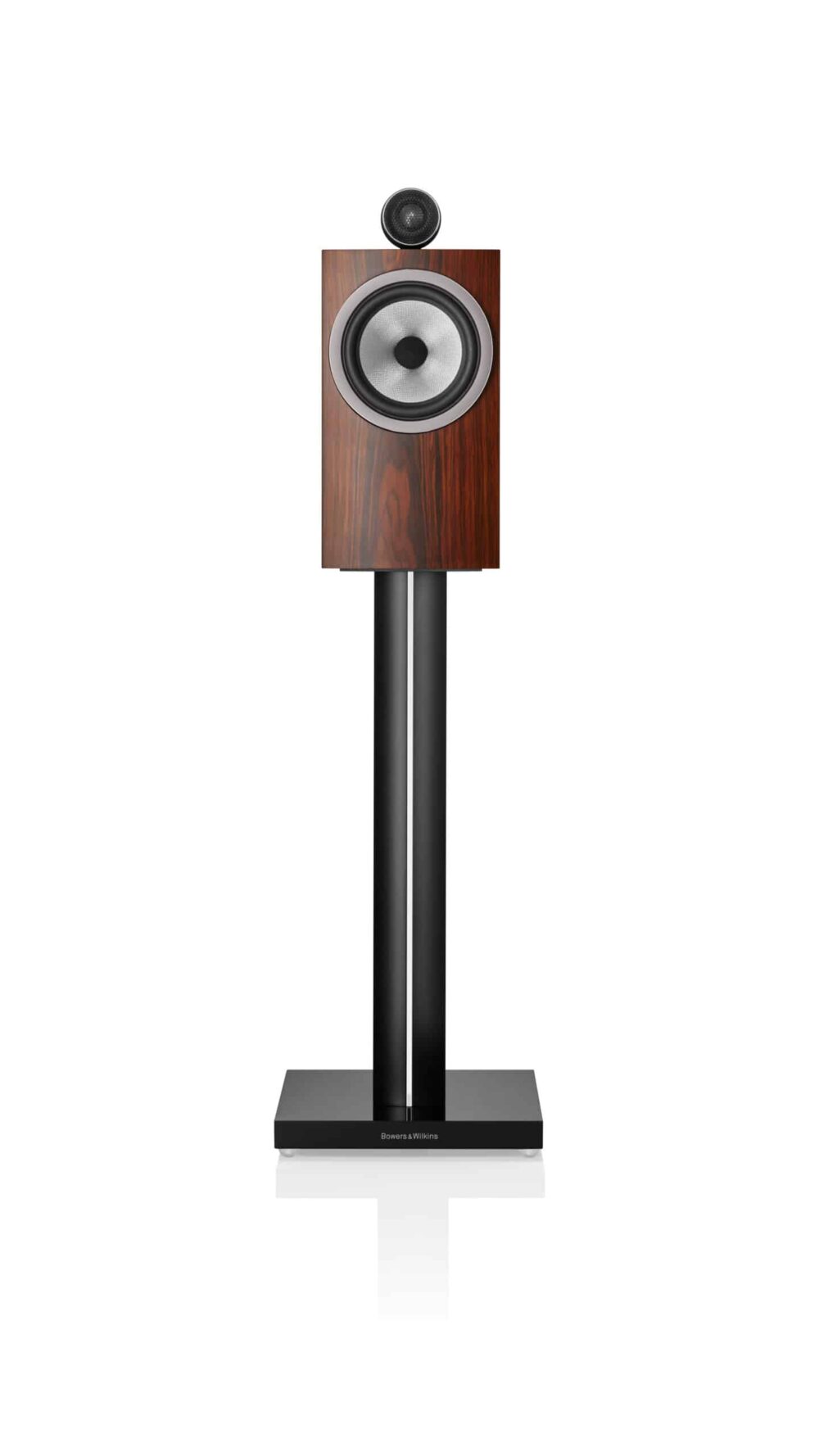

705 S3’s Carbon Dome tweeter is housed in a Solid Body Tweeter-on-Top enclosure evolved from the latest generation of 800 Series Diamond. That joins a new and subtly curved baffle endowed with an all-new ‘pod’ housing for its Continuum Cone bass/midrange driver.
Available in Gloss Black, Satin White or Mocha
* Stand(s) not included.
Gloss Black, Satin White, Mocha
The 700 Series features the latest generation of our iconic Solid Body Tweeter-on-Top housing. Its new, more elongated form incorporates a longer tube-loading system to produce an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminium to better resist resonance.
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminium double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.
Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.
If you’re going to invest in a set of quality loudspeakers like the Bowers & Wilkins 705 S3 it’s only natural that you should want to hear them being put through their paces first. Call Acoustica today to arrange a full demonstration in-store. We have a custom-built demo room, carefully appointed to give you the full aural experience you can expect from the 705 S3.
Here at Acoustica, our commitment to you doesn’t end at the point of sale. We want you to get the most out of your Bowers & Wilkins 705 S3 speakers, and we know how to achieve that. With decades of experience in the industry between us, we have the skill and expertise to set up your sound system to meet the acoustic requirements of your room. However large or small, and whatever shape it might be, our technicians will install your new speakers for optimal performance.
|Dimensions||Height: 345mm (13.6 in) cabinet only
413mm (16.3 in) including tweeter
Width: 192mm (7.6 in) cabinet only
Depth: 297mm (11.7 in) cabinet only
337mm (13.3 in) including grille and terminals
|Net weight||9.58kg (21.1 lb)|
|Technical features||Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone bass / midrange
|Description||2-way vented-box system|
|Drive units||1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø165mm (6.5 in) Continuum cone bass / midrange
|Frequency range||45Hz and 33kHz|
|Frequency response||50Hz – 28kHz ±3dB|
|Sensitivity||88dB spl (2.83Vrms, 1m)|
|Harmonic distortion||2nd and 3rd harmonics (90dB, 1m on axis)
<1% 100Hz – 22kHz
<0.5% 150Hz – 20kHz
|Nominal impedance||8Ω (minimum 3.1Ω)|
|Recommended amplifier power||30W – 120W into 8Ω on unclipped programme|
|Max recommended cable impedance||0.1Ω|
If you have any questions about the Bowers & Wilkins 705 S3, the team at Acoustica is happy to help. To arrange a demonstration, place an order, or for impartial, professional advice, call us on 01244 344 227 during our regular opening hours (Tuesday to Saturday, 10:00 to 17:30). Alternatively, drop us an email to firstname.lastname@example.org and someone from the team will call you back.
