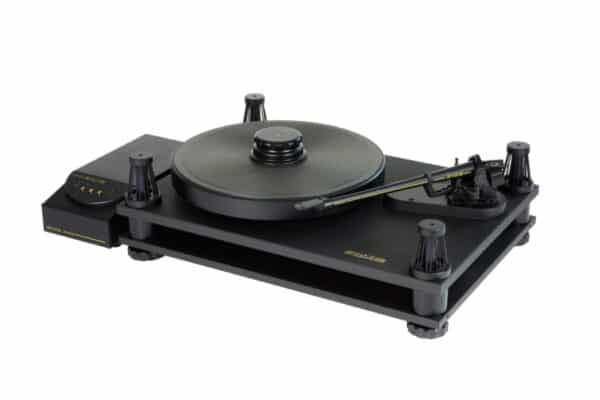

SME Model 20/12 Turntable

A larger and more massive version of our well known Model 20/2. It will accept nine, ten and twelve-inch arms but is especially directed at the exciting Model 312S. This offers a performance some 27% better than a nine-inch arm in respect of angular error distortion. The wand and headshell are pressure die-cast in magnesium and are 27g lighter than they would be in aluminium.

Probably the stiffest and lightest twelve-inch arms ever made these dual problems are at last addressed and on listening, the benefits of minimal tracking error and harmonic distortion are clearly revealed. A turntable should address the problems of extraneous vibrations. These emanate from numerous sources including air and structural vibration from loudspeakers, groove modulation, stray electrical fields and mechanical imperfections in moving parts.

In the Model 20/12, superb instrument quality machining is allied with fundamental physics. The higher the mass and stiffness of a body the less it will flex and vibrate; the duration of a vibration can be shortened by suitable damping.

Model 20/12 weighs approximately 33.5Kg (73.7lb), significant in relation to its size because it is density that matters. For example, the same weight of metal spread over a large enough area would be aluminium foil! The sub-chassis measures only 20 1/2” (520mm) by 14 3/4” (375mm) but weighs 8.0Kg (17.6lb). Its thickness, 5/8” (16mm) resists flexing at low frequencies whilst high frequency resonance is attenuated by efficient extensional damping.
